NH2749

NH2749 Heat-Resistant Alloy

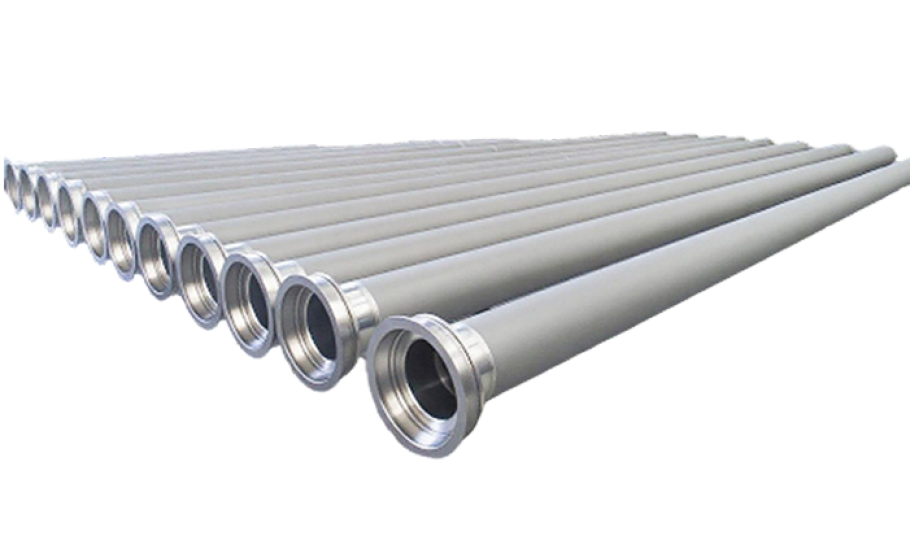

4
Applicable to MIDREX designs in DRI production
Applicable to MIDREX designs in DRI production
Improve the production capacity of the reforming unit
Improve the production capacity of the reforming unit
The operating temperature can reach up to 1185 ℃
The operating temperature can reach up to 1185 ℃
Increase productivity
Increase productivity

NH2749 Description

NH2749 New Materials

NH2749 high-temperature resistant new material is a new type of high-temperature furnace tube material, mainly composed of nickel, chromium, aluminum and other elements, with excellent oxidation resistance and thermal corrosion resistance. The addition of tungsten and other rare and precious metals gives it excellent high-temperature endurance strength. Its unique composition ratio enables it to exhibit excellent long-lasting strength, stability, oxidation resistance, and corrosion resistance in high-temperature environments, making it an ideal choice for high-temperature furnace tubes that can be used for a long time at temperatures up to 1150 ℃.

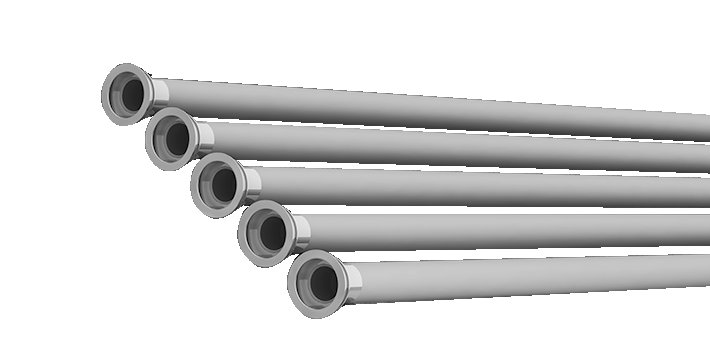

-5

Basic Performance

Basic properties of NH2749 new material

Microstructure

Austenite + Carbides

Mechanical Properties

Room temperature performance

Alloy DesignationTensile Strength Rm(MPa)Yield Strength Rp0.2(MPa)Elongation A(%)
NH19495003503
NH27495504003
NH25-35Mic4502508
NH35-45Mic4502505
NH28-48W54902854


High-temperature, short-duration performance

TemperatureAlloy DesignationTensile Strength Rm (MPa)Yield Strength Rp0.2(MPa)Elongation A(%)
1000℃NH19491246030
NH27491267636.5
NH25-35Mic1015950
NH35-45Mic1156640
NH28-48W51207045
1100℃NH1949814144.5
NH2749844239
NH25-35Mic704549.5
NH35-45Mic664151
NH28-48W5704550

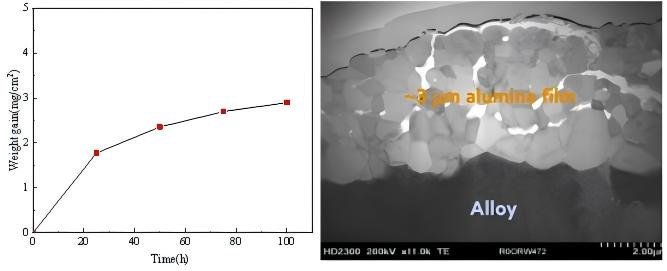

Antioxidation Property

The slope of the oxidation weight gain curve is small, indicating excellent antioxidant performance

Oxidation weight gain curve exposed to air at 1100 ℃ for 100 hours

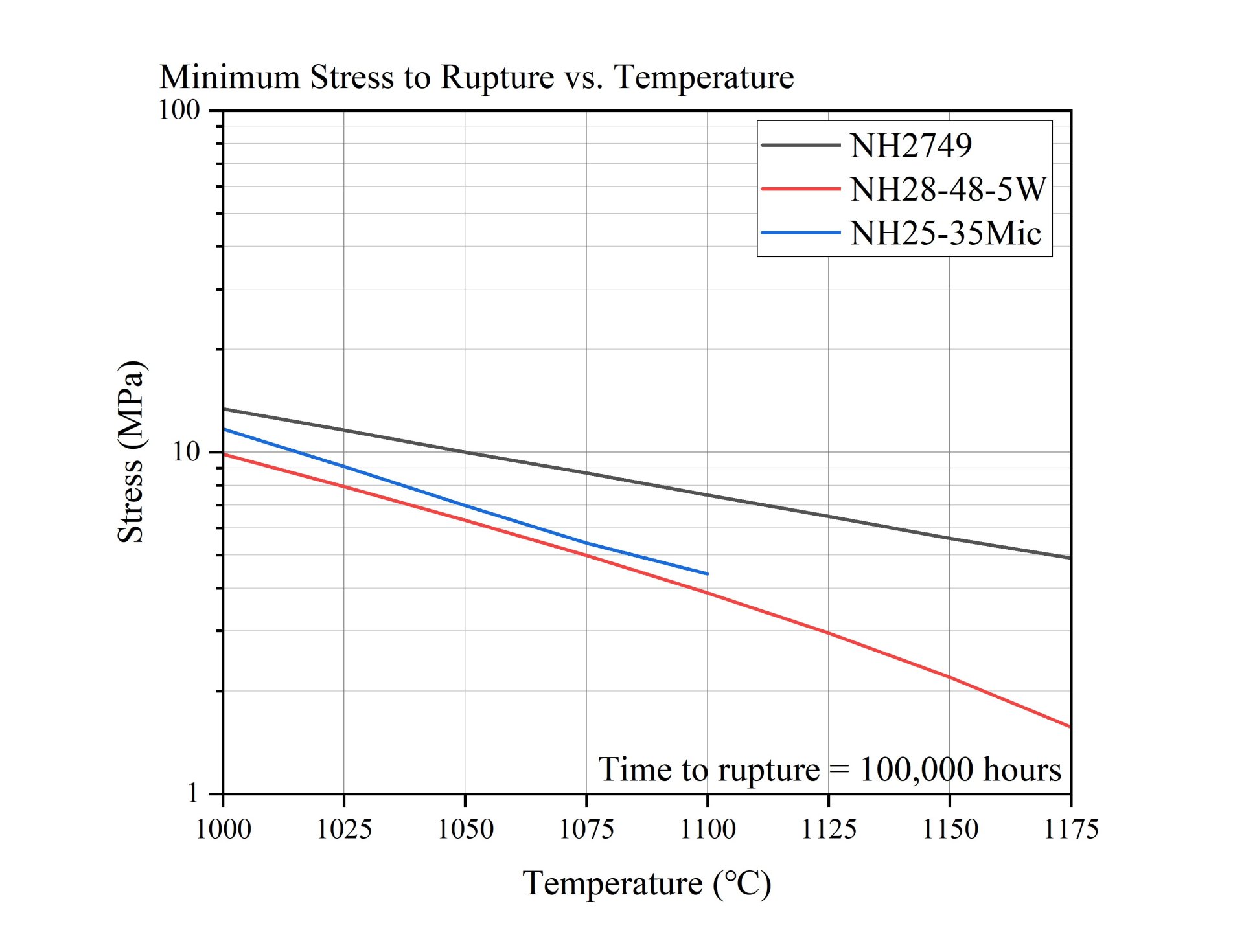

100000 Hour Stress Fracture Strength

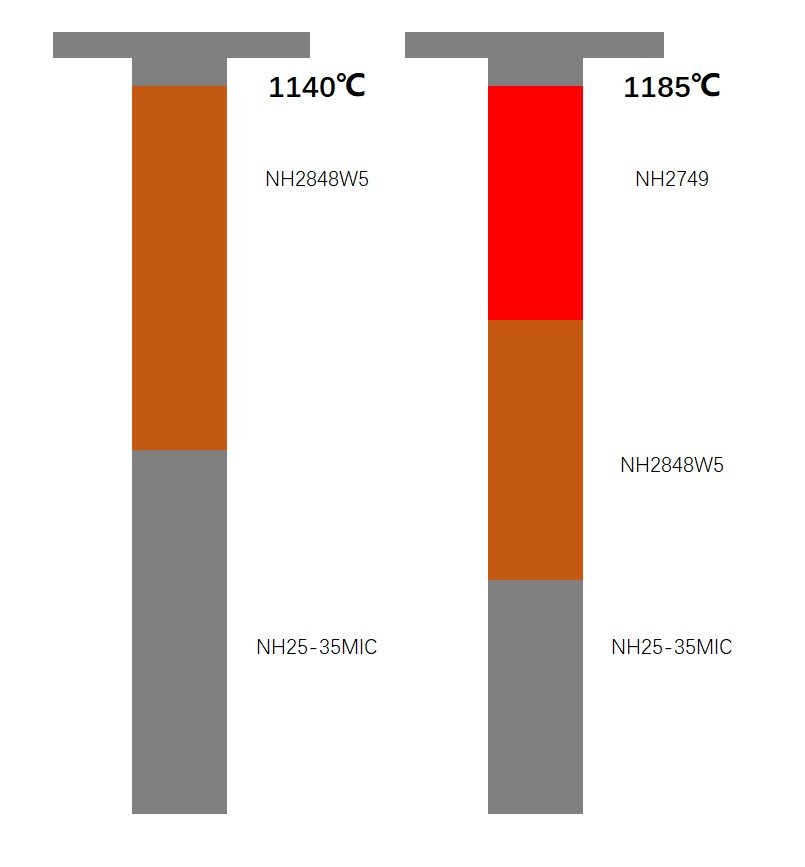

Due to its higher durability and stronger resistance to corrosion, carburizing, and oxidation at high temperatures, NH2749 is suitable for operating temperatures exceeding 1185°C

Applicable to MIDREX designs in DRI production Applicable to MIDREX designs in DRI production
The operating temperature can reach up to 1185 ℃ The operating temperature can reach up to 1185 ℃
Improve the production capacity of the reforming unit Improve the production capacity of the reforming unit
Extend the service life of furnace tubes Extend the service life of furnace tubes
Improve the mechanical properties of the furnace tubes Improve the mechanical properties of the furnace tubes
Improve productivity and increase production capacity Improve productivity and increase production capacity

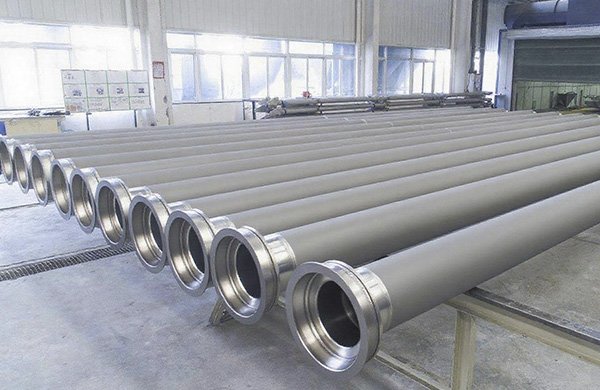

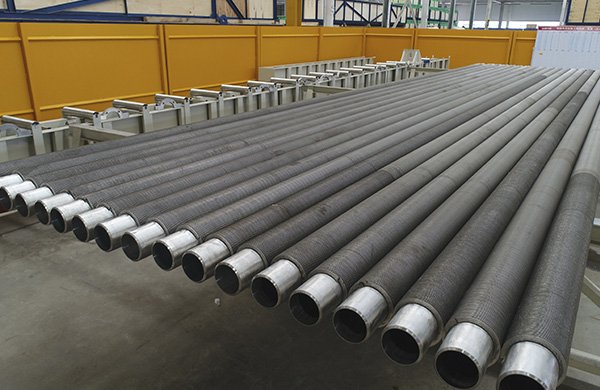

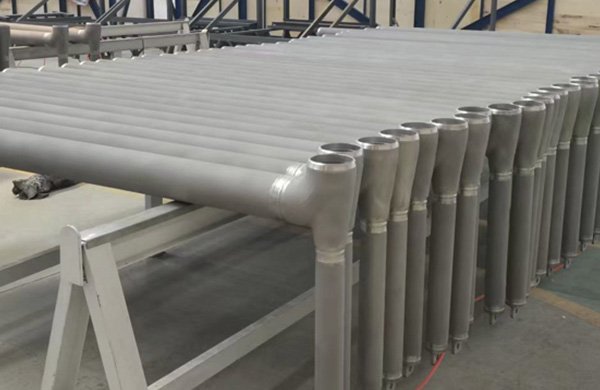

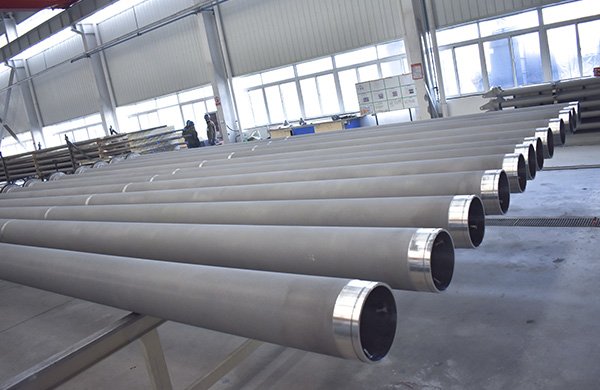

典型产品
